An oscilloscope draws voltage against time, so you can always work out a signal’s frequency from the screen, either by counting divisions or by letting a digital scope measure it for you. This guide covers both methods, plus how to connect the probe safely and how to get a stable, accurate reading. It includes real examples from retro hardware.
Quick answer: measure the time for one complete cycle (the period, T) using the horizontal scale, then calculate frequency = 1 / T. For example, one cycle spanning 4 divisions at 0.5 ms per division gives T = 2 ms, so f = 1 / 0.002 s = 500 Hz. On a digital scope, press Measure and add a Frequency measurement for a live reading.



Before you start: connect the probe correctly
- Set the probe and channel to 10x for most work. It loads the circuit less and gives the scope more bandwidth than 1x.
- Compensate the probe. Clip it to the scope’s calibration output, which on most scopes is a square wave of about 1 kHz, and adjust the trimmer on the probe until the corners are square, with no overshoot or rounding.
- Probe tip to the signal, ground clip to circuit ground, keeping the ground lead as short as possible to reduce ringing and noise.
- Safety: on a normal bench scope the ground clip is connected to mains earth. Never clip it to a point that isn’t at ground potential, such as the mains side of a power supply or parts of a CRT TV chassis. That creates a short through the scope. Use an isolation transformer or a differential probe for that kind of work. See our guide on how to connect an oscilloscope to a circuit for more.
Method 1: Calculate frequency from the graticule
- Get a stable trace. Set the trigger source to the channel you’re measuring, set the trigger to edge, and move the trigger level to roughly the middle of the waveform until the trace stops moving.
- Adjust the timebase (time/div) so that one or two complete cycles fill most of the screen. The bigger the cycle on screen, the more precisely you can read it.
- Pick a repeatable point, such as where the rising edge crosses the centre line, and count the horizontal divisions to the same point on the next cycle. Use the small sub-divisions for fractions.
- Work out the period: T = divisions × time per division.
- Calculate the frequency: f = 1 / T.
| Divisions per cycle | Time/div | Period (T) | Frequency (1/T) |
|---|---|---|---|
| 5 | 200 µs | 1 ms | 1 kHz |
| 4 | 0.5 ms | 2 ms | 500 Hz |
| 6.4 | 10 µs | 64 µs | 15.625 kHz (PAL TV line rate) |
| 2.5 | 0.1 µs | 0.25 µs | 4 MHz |
Measuring across several cycles and dividing by the number of cycles reduces reading error. For example, 5 cycles in 8 divisions at 1 ms/div means T = 8 ms / 5 = 1.6 ms, so f = 625 Hz.
Method 2: Cursors
Most digital scopes have time cursors. Place one vertical cursor on a rising edge and the other on the next rising edge, and the scope shows the time difference (Δt). Many also display 1/Δt directly, which is the frequency. Cursors are useful when the automatic measurement gets confused by a noisy or complex signal, because you choose exactly which edges to measure between.
Method 3: Automatic measurements

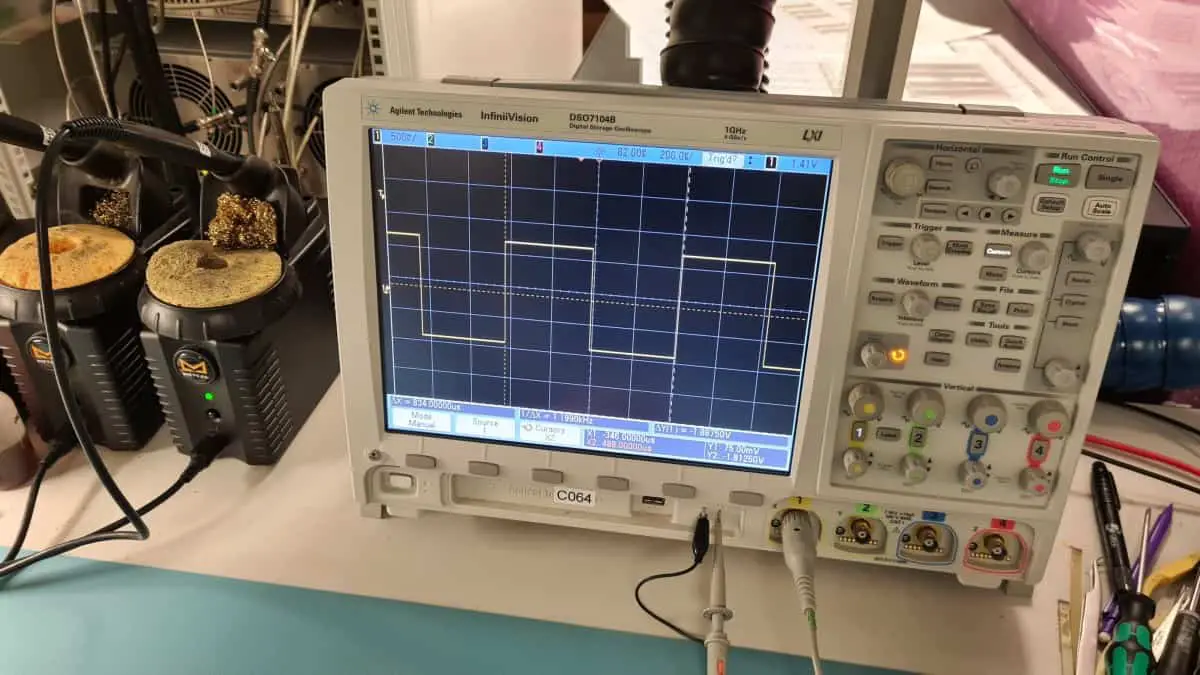

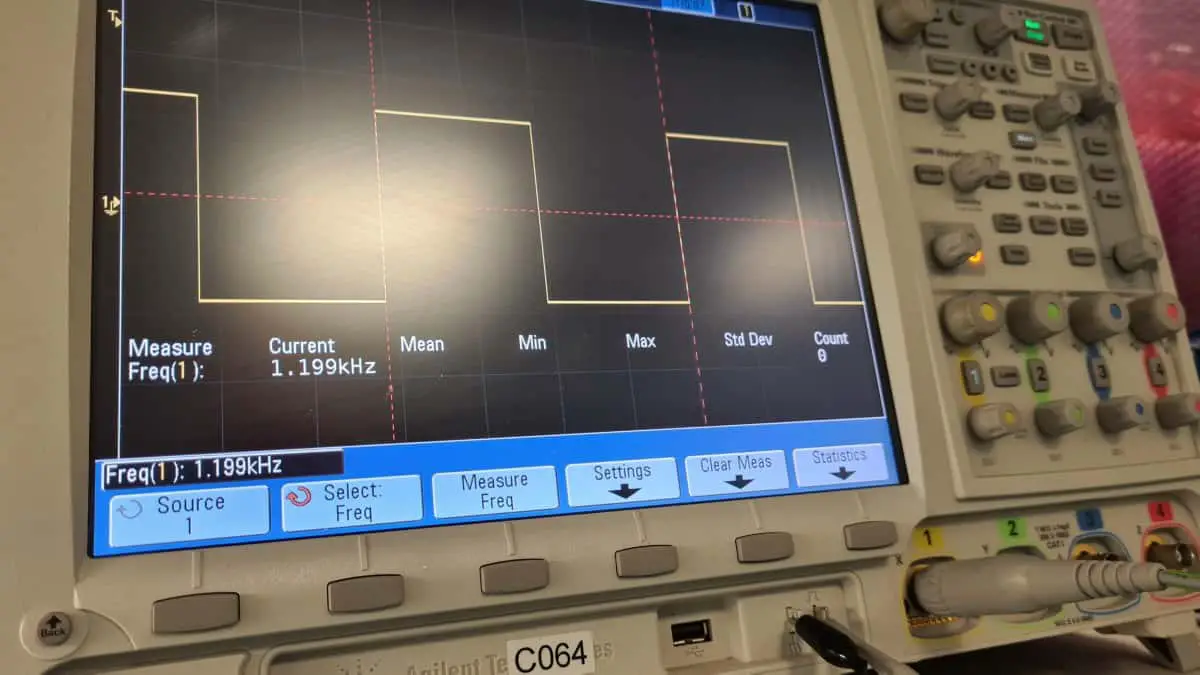

On almost any modern digital storage oscilloscope, open the Measure menu and add Frequency (and often Period) for the channel. The reading updates live, and many scopes can show statistics such as the mean, minimum, maximum and standard deviation over time. Some scopes also have a built-in hardware frequency counter, which is usually more precise than the on-screen measurement.
Tips for trustworthy automatic readings:
- Have at least a couple of full cycles on screen.
- Make sure the trigger is stable; an unstable trace often means a jumping reading.
- On noisy signals, try the channel’s bandwidth limit, or high-frequency reject on the trigger.
- Remember the reading is only as accurate as the scope’s timebase. For calibration-grade accuracy, use a dedicated frequency counter.
Method 4: Lissajous figures (comparing with a known frequency)
Older analogue scopes without measurement features can compare an unknown signal with a known one in X-Y mode. Feed the known frequency to one channel and the unknown to the other. When the ratio is a simple whole-number ratio, a stable pattern appears; a single ellipse or circle means the two frequencies are equal. It’s mainly of historical interest now, but handy with a signal generator and an old scope.
Retro examples worth knowing
- ZX Spectrum 48K: the master crystal runs at 14 MHz and the Z80 CPU clock is 3.5 MHz (14 ÷ 4). A missing or wrong clock is a quick check when a Spectrum shows a blank screen. See common ZX Spectrum faults.
- Commodore 64: the CPU clock is about 0.985 MHz on PAL machines and 1.023 MHz on NTSC machines.
- PAL video: horizontal sync pulses repeat at 15.625 kHz (a 64 µs line), and the colour subcarrier is 4.43361875 MHz. Checking for line sync is a fast way to tell whether a console or computer is producing video at all.
Choosing a scope that can measure what you need
Bandwidth is the key specification. A common rule of thumb is to choose a scope with at least three to five times the bandwidth of the highest frequency you need to see. Square-wave clocks need more, because their sharp edges contain higher harmonics. For most 8-bit and 16-bit retro hardware, an entry-level 50 to 100 MHz two-channel digital scope is plenty. Handheld scopes are handy for quick checks, but have less bandwidth and a smaller screen.
- Entry-level 100 MHz digital oscilloscopes (UK: Amazon.co.uk)
- Replacement 10x probes
- Handheld oscilloscopes
For the other side of fault-finding, see logic probe vs multimeter and our best multimeters for retro electronics.
As an Amazon Associate, RetroTech Lab earns from qualifying purchases. This doesn’t change the price you pay.
FAQ
Can an oscilloscope measure frequency?
Yes. Measure the period of one cycle from the horizontal scale and calculate frequency = 1 / period, or use the scope’s automatic frequency measurement or cursors.
How do you calculate frequency from an oscilloscope?
Count the horizontal divisions for one complete cycle, multiply by the time per division to get the period, then divide 1 by the period. For example, 4 divisions at 0.5 ms/div gives 2 ms, which is 500 Hz.
Why is my oscilloscope frequency reading jumping around?
Usually because the trigger isn’t stable or the signal is noisy. Set the trigger source and level correctly, show at least two cycles, and try the bandwidth limit or high-frequency reject.
What bandwidth oscilloscope do I need?
As a rule of thumb, three to five times the highest frequency you want to see, and more for fast square-wave edges. A 50 to 100 MHz scope covers most retro computer and console work.
