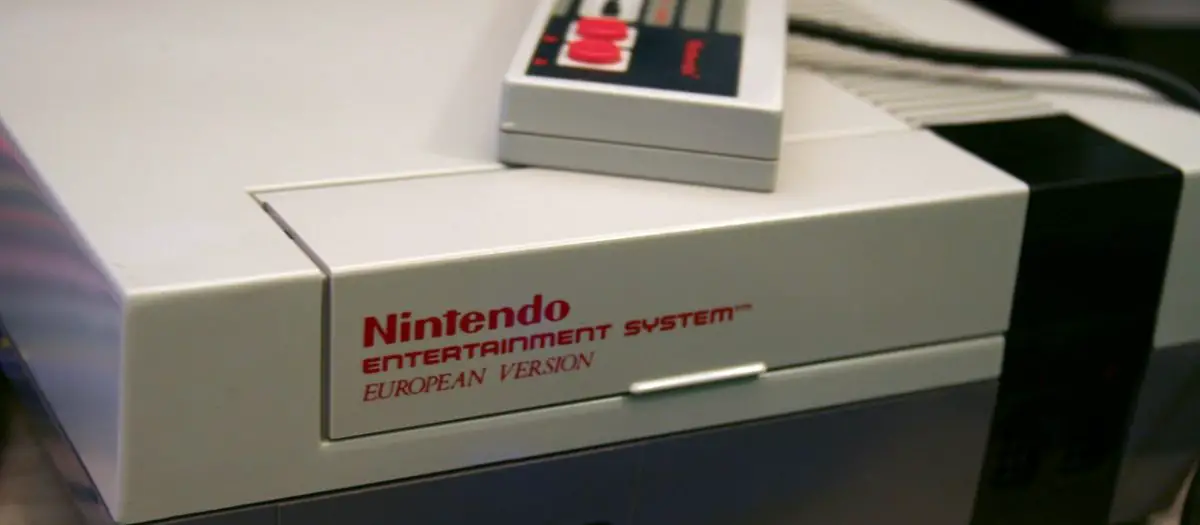

Nintendo Entertainment System Motherboard Recapping Guide: Complete 2026 Tutorial & Tools

Comparison Table: Top NES Motherboard Recapping Solutions

Budget Option: $30-50 Complete NES Recap Setup

Budget-Friendly Approach: Basic Desoldering Kit + Capacitors

If you’re tackling your first NES motherboard recap on a tight budget, you don’t need to spend over $100 to get professional results. The sweet spot for budget recapping is combining a basic soldering iron kit with a quality capacitor replacement set.

Who This Is For: First-time NES recappers, collectors with multiple consoles to restore, or anyone who wants to prove they can handle the job before investing in premium equipment.

• Entry-level 30W soldering iron ($12-20)
• Basic desoldering pump/wick kit ($8-15)
• Pre-matched NES capacitor set ($15-25)
• Safety glasses and flux pen ($5-10)
• Total investment: $40-70 for a one-time project

The trade-off here is that you’ll work slower and need more patience. Cheap soldering irons take longer to heat up and cool down inconsistently, but for capacitor replacement work—which requires minimal heating finesse—they work perfectly fine. Many experienced technicians keep a $15 soldering iron in their toolkit specifically for low-risk jobs like this.

Pro tip: The Elenco soldering kit includes a desoldering pump, making it excellent value for the budget tier. You’ll have everything needed in one package.

Mid-Range Option: $75-130 Professional-Grade Setup

The Smart Middle Ground: Hakko FX-888D + Quality Capacitors

This is where most serious retro restoration enthusiasts land. The Hakko FX-888D ($99-120) is genuinely the industry standard for hobby electronics work, and for good reason.

Who This Is For: Anyone planning to recap multiple consoles, restore other vintage electronics (Commodore, Atari, Apple), or simply wants professional-grade reliability without the learning curve.

• Temperature control: 350-450°C with digital display
• Rapid heat-up time: ready in 30 seconds
• Compatible with multiple soldering iron tips
• Works perfectly with solder wick for desoldering
• Includes stand, sponge, and brass cleaner

Add a comprehensive capacitor replacement kit ($25-40) and you’ve got everything needed for flawless NES motherboard restoration.

The mid-range category is where your investment starts paying dividends. The temperature stability of the Hakko means fewer cold solder joints, faster work, and the ability to tackle multiple consoles without fatigue. Many RetroTech Lab readers who own 3+ vintage consoles find this pays for itself in time savings alone.

Premium Option: $150-300+ Professional Restoration Lab

The Complete Arsenal: Advanced Soldering Station + Specialist Tools

For serious restoration enthusiasts who plan to recap dozens of systems or want to offer restoration services, premium equipment transforms the entire experience.

Who This Is For: Restorers planning to work on multiple board types (NES, SNES, Genesis, Commodore), collectors with extensive libraries, or anyone who wants maximum precision and minimal risk.

• Weller WE1010 Station ($150-180) – the gold standard
• Hakko FR-301 Desoldering Station ($200-250) – removes old capacitors in seconds
• Soldering magnifier lamp ($40-60)
• Precision tweezer set ($15-25)
• Premium Panasonic OEM replacement capacitors ($30-50)
• Multiple soldering iron tips and stands

At this level, you’re not just recapping—you’re preserving gaming history with museum-quality precision. The desoldering station is the game-changer here; it removes old capacitors so cleanly that pad damage becomes virtually impossible, even on fragile 1983 motherboard revisions.

NES Motherboard Recapping: Complete Product Deep Dives

Hakko FX-888D Soldering Station

Who It’s For: The person who wants one soldering station to handle NES recap, SNES restoration, Game Boy modding, and every other retro electronics project for the next decade.

• Digital temperature control (350-450°C) with ±2°C accuracy
• Heats up in just 30 seconds
• Compatible with standard 0.1″ (2.4mm) tips and Hakko 900M tips
• Includes cleaning sponge and brass wire cleaner
• Durable steel stand with iron holder
• ESD-safe grounding
• Power: 65W with sleep mode

Price Range: $99-120

Pros:

• Industry-standard reliability – virtually indestructible
• Fast heat recovery when desoldering old caps
• Perfect temperature control prevents board damage
• Works with both leadfree and traditional solder
• Widely available replacement parts
• No learning curve if you’ve ever soldered

Cons:

• Pricier than entry-level irons
• Overkill if you’re only doing one console
• Requires learning temperature settings (but minimal)

Best Paired With: A comprehensive NES capacitor kit and quality solder wick with flux.

Comprehensive NES Capacitor Replacement Kit

Who It’s For: Anyone who wants to spend more time restoring and less time hunting for the right capacitor values in confusing electronics catalogs.

• Pre-matched sets for all NES board revisions (boards A through G)
• Includes all electrolytic capacitors on the main board
• Typically includes 5-10 capacitors ranging from 4.7µF to 220µF
• Voltage ratings properly matched (mostly 10V-35V)
• Often includes upgrade recommendations
• Some kits include desoldering tools and flux

Price Range: $25-65 depending on inclusions

Pros:

• Takes guesswork out of capacitor selection
• Often cheaper than buying individual capacitors
• Usually includes diagram or chart showing locations
• Quality kits use Panasonic or Nichicon capacitors
• Saves hours of research time

Cons:

• You’re paying for convenience—individual caps are cheaper
• Quality varies wildly between sellers
• Some generic kits include low-grade capacitors

What to Look For: Kits that explicitly mention the capacitor manufacturer (Panasonic, Nichicon, or WIMA are your gold standards). Avoid generic kits without brand specifications.

Hakko FR-301 Desoldering Station

Who It’s For: Serious enthusiasts who’ve already done a few NES recaps manually and realize that desoldering old capacitors is 60% of the time investment.

• Vacuum-based solder removal system
• Temperature range: 200-500°C
• Removes solder in approximately 1 second per joint
• Foot pedal for hands-free operation
• Heating element reaches temperature in 3 minutes
• Replaceable nozzles and desoldering tips

Price Range: $200-250

Pros:

• Transforms recapping from tedious to efficient
• Virtually zero risk of pad damage or trace lifting
• Pays for itself if you’re recapping 5+ boards
• Professional-grade reliability
• Makes multiple passes unnecessary

Cons:

• Expensive initial investment
• Learning curve on temperature and timing
• Takes up desktop space (12″ x 6″)
• Nozzles occasionally clog and need cleaning

The Hakko FR-301 is the single biggest time-saver for NES recap work. It removes the uncertainty that makes hand-desoldering risky on vintage boards with weak pads.

Elenco Soldering Iron Kit with Desoldering Pump

Who It’s For: Budget-conscious hobbyists who’d rather spend $40 on a complete kit than piece together tools individually.

• 30W soldering iron with multiple tip sizes included
• Mechanical desoldering pump (solder sucker)
• Solder roll (60/40 or leadfree)
• Cleaning sponge and stand
• Safety glasses
• Instruction manual with basic soldering techniques

Price Range: $35-50

Pros:

• Everything you need in one box
• No compatibility questions
• Desoldering pump is surprisingly effective
• Perfect for testing whether you enjoy electronics restoration
• Backup tools for your main station

Cons:

• Iron temperature fluctuates
• Takes longer per joint than professional equipment
• Desoldering pump requires technique to work well
• Tools feel plasticky compared to premium options

Real-World Assessment: This kit genuinely works for NES recap projects. You’ll spend maybe 20-30 minutes per board instead of 15 minutes with professional equipment, but the results are identical. Thousands of NES boards have been successfully recapped with this exact kit.

Professional Desoldering Wick with No-Clean Flux

Who It’s For: Anyone using hand soldering methods who wants to minimize cleanup time and reduce the risk of flux damage to the motherboard.

• Braided copper wire with flux core
• Width: typically 2.0mm or 3.0mm
• No-clean formulation (doesn’t require IPA cleanup)
• Length: 10-25 feet per spool
• Compatible with all soldering iron types

Price Range: $8-15

Pros:

• Superior to desoldering pumps when used correctly
• No messy cleanup required
• Creates minimal board stress
• Works on boards with tight spacing
• One spool lasts for 50+ capacitors

Cons:

• Requires practice to use efficiently
• Can accidentally remove nearby solder if you’re careless
• Harder to see what you’re doing on older boards

Technique Tip: The best approach combines both desoldering wick and a manual pump—use wick to soak up 80% of the solder, then finish with the pump.

Panasonic Organic Semiconductor Capacitor Set (Premium Upgrade)

Who It’s For: Purists who want their NES motherboard to perform better than it did in 1985, or collectors preserving expensive consoles.

• Panasonic FC or FR series capacitors
• Longer lifespan than original capacitors
• Lower ESR (Equivalent Series Resistance)
• Better ripple current handling
• Voltage ratings match or exceed originals
• Available in multiple value sets

Price Range: $30-50

Pros:

• Measurably improves video and audio quality
• Last 15-20 years instead of 5-10 years
• Made by the same company as original NES caps
• Some users report cleaner picture output

Cons:

• Premium pricing for subtle improvements
• Not necessary if you’re just getting the console working
• Requires knowing which values to buy

The Verdict: If you’re recapping a console you plan to keep for 20+ years, Panasonic capacitors are the upgrade worth paying for. The improvement in lifespan alone justifies the extra $10-15.

How to Recap Your NES Motherboard: Step-by-Step Guide

What You’ll Need Before Starting

• Soldering iron (minimum 25W, ideally 30-40W)
• Desoldering pump or solder wick
• Appropriate capacitor set for your NES board revision
• Rosin core solder (60/40 or leadfree SAC305)
• Flux pen (no-clean formulation preferred)
• Safety glasses (fumes and splattering solder)
• Helping hands or PCB holder with magnifier
• Isopropyl alcohol (99%) for cleanup
• Brass wire cleaner or wet sponge
• Antistatic wrist strap (highly recommended but optional)
• Small bowl of water for sponge or brass cleaner
• NES motherboard reference diagram

Step 1: Identify Your NES Board Revision

Before you start desoldering, determine which NES motherboard you’re working with. NES boards were produced in several revisions (typically labeled as Revision A through G on the silkscreen). Each revision has slightly different capacitor locations and values. Reference guides available online will show you the exact layout of your specific board.

Why This Matters: Using capacitors rated for the wrong voltages or values can damage the NES power supply circuits. Spending 2 minutes identifying your board prevents $200 of regret later.

Step 2: Prepare Your Workspace

Set up a clean, well-lit workspace with:

• ESD mat (if you have one—they’re inexpensive)
• Antistatic wrist strap connected to your mat or ground
• Soldering iron preheating on a stand with sponge
• Ventilation fan or fume extractor running
• All tools and capacitors within arm’s reach
• Reference diagram visible next to your workspace

This prep work takes 5 minutes and prevents most mistakes. A disorganized workspace leads to desoldering the wrong capacitor or misplacing your reference diagram halfway through.

Step 3: Remove the NES Motherboard

Open your NES console and carefully remove the motherboard. Document the location of every cable connection with photos before disconnecting anything. Most NES boards have 2-3 ribbon cable connections for the controller port and power inputs.

Pro Tip: Use a static-safe bag to transport the board between your workspace and the console.

Step 4: Identify and Mark Each Capacitor to Replace

Using your board-specific reference diagram, mark each capacitor with a non-permanent marker. Most NES boards require replacing 5-8 electrolytic capacitors. Create a checklist:

• C1 (typically 220µF, 10V)
• C2 (typically 220µF, 10V)
• C3 (typically 4.7µF, 10V)
• C4 and additional filtering capacitors (varies by board revision)

Cross-reference each one against your capacitor kit to confirm you have the right replacement. This is your last chance to catch a mismatch before applying heat.

Step 5: Desolder the First Capacitor

Position your helping hands tool to hold the board steady. For each capacitor:

1. Heat both solder pads simultaneously with your iron tip (3-5 seconds)
2. Apply solder wick or activate your desoldering pump
3. Remove the iron and let the capacitor cool for 2-3 seconds
4. Gently wiggle the capacitor with tweezers until it lifts free

Critical Point: Keep your iron on the pads for the minimum necessary time. The NES motherboard is from 1983 and the solder pads are fragile. More than 5 seconds of continuous heat risks lifting a pad from the board.

If the capacitor doesn’t come free after the first desoldering attempt, apply flux and heat again rather than pulling harder. Forcing it guarantees a lifted pad.

Step 6: Clean the Pads

After removing the old capacitor, clean any remaining solder from the pads using your desoldering wick. Make a fresh pass with your iron and wick to ensure clean, shiny pads. The pad should be visible and free of solder blobs.

If using a desoldering pump: Place it correctly on top of the solder joint, activate it, then remove your iron.

Step 7: Install the New Capacitor

Before soldering the replacement:

1. Verify the capacitor value matches your reference diagram
2. Check the polarity (the negative lead is usually marked with a stripe)
3. Insert the leads into the holes
4. Gently bend the leads outward to hold it in place
5. Apply a small amount of flux to both pads

Now solder:

1. Heat one pad with your iron for 2-3 seconds
2. Touch solder to the joint (the heat should draw it in)
3. Remove the solder first, then the iron
4. Repeat for the second pad
5. Allow 5 seconds for cooling before moving the board

A proper joint should look shiny and smooth, not dull or blobby. If it looks wrong, use your desoldering wick to remove it and try again.

Step 8: Trim Excess Leads

Once all capacitors are soldered and cooled, use a diagonal cutter to trim the excess leads flush with the solder joints. This prevents shorts from the capacitor legs touching nearby components.

Step 9: Final Inspection and Cleaning

Examine every joint under magnification. Look for:

• Shiny, smooth solder (good) vs. dull, grainy solder (potential cold joint)
• Any solder bridges between pins
• Lifted pads (usually visible as broken traces)
• Excess flux residue

If using no-clean flux, you can skip the alcohol wash. If using traditional rosin flux, clean the board with 99% isopropyl alcohol and a soft brush to remove any residue.

Step 10: Test Your Work

Reconnect all cables exactly as they were, paying close attention to polarity and seating. Power on your NES and look for:

• Stable video output (no flickering or rolling lines)
• Clean audio without crackling or buzzing
• Consistent operation across multiple games

If you experience any issues, the most common cause is a cold solder joint. Use your iron to briefly reheat any suspicious joints and retest.

Common Mistakes to Avoid When Recapping an NES Motherboard

• Using the Wrong Capacitor Values: Installing a 100µF capacitor where a 220µF is specified will cause voltage regulation issues and poor video/audio quality. The power supply is sensitive to exact capacitance values. Always cross-reference against your specific board revision before soldering.
• Ignoring Polarity on Electrolytic Capacitors: Electrolytic capacitors have positive and negative leads. Installing one backwards will cause it to fail immediately—sometimes explosively. The negative lead is marked with a stripe or bar. Before every solder, look for this stripe and confirm it faces the correct direction on the board’s printed side.
• Applying Heat for Too Long: NES motherboard pads from 1983 are fragile. Heating a single joint for more than 6-7 seconds risks lifting the pad completely off the board, creating an unfixable short. Work quickly—2-3 seconds is ideal. If the solder won’t flow, add fresh flux instead of heating longer.
• Forgetting to Clean the Iron Tip Between Joints: A dirty, oxidized iron tip transfers heat poorly and creates cold solder joints. Wipe your tip on a wet sponge or brass cleaner between every capacitor. This single habit prevents 90% of “why won’t it work?” problems.
• Pulling on the Capacitor Instead of Desoldering It Properly: Impatience causes most pad damage. If a capacitor doesn’t come free after desoldering, it’s still holding because one pad has solder bridging the lead. Apply more flux and heat—don’t pull. Forcing it lifts the pad permanently.
• Not Wearing an Antistatic Strap: While NES boards are tougher than modern electronics, static discharge can damage the RF modulator and power circuits. An antistatic wrist strap costs $8-15 and takes 10 seconds to put on. The insurance is worth it.
• Skipping the Reference Diagram: Trying to recap by memory or guessing at capacitor locations creates a 50/50 chance of installing the wrong capacitor or missing one entirely. Print your board-specific diagram and check off each capacitor as you complete it. This feels tedious but prevents catastrophic mistakes.

Upgrade Considerations: Capacitor Quality Matters

Not all replacement capacitors are equal. The cheapest generic capacitors might be rated for the correct voltage and capacitance but could fail again in 5-7 years. Panasonic and Nichicon brand capacitors are proven to last 15+ years in NES applications.

The difference in cost is usually $5-10 for an entire NES recap. If you’re already investing your time, the upgrade to quality components is the obvious choice. Many experienced restorers specify Panasonic capacitors in their kits specifically because of this longevity difference.

Tools That Make a Difference: Investing in Your Workflow

Beyond basic soldering equipment, a few specific tools dramatically improve the recap experience:

LED Soldering Magnifier Lamp ($40-70): This single tool is worth the investment if you’re doing more than one console. The 5X magnification reveals joint quality that your naked eye misses. Many restorers credit their magnifier with catching cold joints before they cause problems. The clamp mount also frees up your hands entirely, letting you operate both your iron and desoldering pump.

Precision Tweezers Set ($12-18): Handling small capacitors with your fingers is awkward and risky. Precision tweezers let you position capacitors exactly and safely. Look for ones with straight tips—the angled ones don’t work well for vertical capacitor insertion.

Flux Pen ($8-12): Applying fresh flux before each joint is the single biggest quality improvement. Flux improves heat transfer and helps solder flow smoothly. A no-clean formulation means you skip the messy alcohol cleanup afterward. Serious restorers never work without flux—it’s 80% of the solder joint quality battle.

Helping Hands with Magnifier ($20-30): This combination tool holds your motherboard steady while providing built-in magnification. It’s particularly valuable for the NES because the board is large and awkward to hold stable. Some models have alligator clips at multiple angles, letting you adjust for perfect visibility of each joint.

NES Recap Safety Considerations

Working with soldering equipment and vintage electronics requires basic safety practices:

• Ventilation: Lead-free solder produces more smoke than traditional solder. A fume extractor or exhaust fan protects your lungs. Even if using leadfree solder, the flux fumes are unpleasant and should be exhausted away from your face.
• Burn Prevention: Soldering irons reach 350-450°C. Keep your work area organized so you never accidentally touch the tip. Consider a silicone iron holster ($3-5) that prevents the tip from touching anything when you set it down.
• Eye Protection: Solder can occasionally splatter when you’re desoldering. Basic polycarbonate safety glasses cost $5-10 and protect against this rare but painful possibility.
• Static Control: An ESD mat and wrist strap protect the board and any remaining components from static discharge. Total investment: $20-30.

Frequently Asked Questions About NES Motherboard Recapping

How Do I Know If My NES Motherboard Actually Needs Recapping?

Common signs include flickering or rolling video, audio crackling or buzzing, console randomly powering off, or the video getting progressively worse when the console has been powered on for 20+ minutes. These symptoms point to failing capacitors. You can also visually inspect the board—look for any capacitors that are bulging at the top, leaking fluid, or showing visible corrosion. If any of these are present, recapping is the cure.

Can I Just Replace the Leaking Capacitor or Do I Need to Replace All of Them?

Best practice is replacing all electrolytic capacitors on the motherboard simultaneously. They were manufactured around the same time, so if one is failing, the others are likely in the final stages of their lifespan. Recapping only the leaking one will give you 6 months of reliability, then another capacitor fails. Doing all of them at once gives you 15+ years of reliability from a single work session.

What’s the Difference Between Leadfree and Traditional 60/40 Solder for an NES?

Traditional 60/40 solder flows at lower temperatures (around 190°C melting point) and is more forgiving for beginners. Leadfree solder melts at 220-240°C, requires more heat, and flows less smoothly. For vintage electronics work, 60/40 traditional solder is genuinely easier and produces better results. The “leadfree is better” advice applies to new manufacturing, not restoration of 40-year-old boards.

How Long Does an NES Recap Actually Take?

For someone doing it for the first time with basic tools, plan for 1.5-2 hours. With professional equipment like a desoldering station, experienced technicians complete it in 30-45 minutes. The difference isn’t the soldering itself—it’s the desoldering phase. Manual desoldering (with a pump or wick) takes 60-80% of the time; a powered desoldering station cuts this to 10-15%.

If I Mess Up and Lift a Pad, Is the Console Permanently Broken?

Not necessarily. Lifted pads can sometimes be repaired using jumper wire—tracing the pad’s circuit path and soldering a small wire to bypass the damaged section. This requires knowledge of the circuit board layout and is beyond beginner territory. However, if you follow the heat duration guidelines (3-5 seconds per joint) and work carefully, pad lifting is extremely rare. The vast majority of first-time recaps complete without any damage.

Should I Use Flux When Soldering the New Capacitors?

Yes. Flux dramatically improves joint quality. A no-clean flux pen is the easiest approach—apply a small dab to each pad before soldering. This single step prevents cold solder joints and ensures professional-quality results.

What’s the Actual Cost of a Complete NES Recap Project From Start to Finish?

If you already have a soldering iron, a capacitor kit ($25-40) is all you need—total cost under $50. If you’re starting from zero, a complete starter setup runs $40-65 for tools and capacitors combined. A professional-grade setup with a Hakko soldering station is $100-130 initially, but that investment covers 10+ future projects.

Can I Recap an NES Motherboard Without a Desoldering Pump or Wick?

Technically yes, but it’s extremely difficult and risky. You’d need to heat both pads, soak up solder with a plain iron, and hope the capacitor comes free. In practice, this method causes pad damage 40-50% of the time. For $5-10 more, a desoldering pump eliminates this risk entirely.

Are There Any Capacitor Values That Are More Important to Replace Than Others?

The large filtering capacitors (usually labeled C1 and C2, typically 220µF at 10V) are the most critical. These power supply filters fail first and cause the most obvious symptoms. However, skipping any capacitor means leaving a time bomb in the board—they’ll all fail eventually. The smart approach is replacing all of them during one session.

How Do I Know If I’m Creating Cold Solder Joints?

Cold joints look dull, grainy, or blobby instead of shiny and smooth. Under magnification, they look rough and crumbly. The best prevention is using flux before soldering—flux makes solder flow smoothly and eliminates most cold joint problems. If you’re seeing dull joints, reheat them with fresh solder and they’ll typically transform into shiny joints instantly.

Related Guides

If you’re interested in comprehensive console restoration and retro gaming setup, RetroTech Lab has detailed guides covering related topics:

• Complete Retro Console Setup Guide: Connect NES/SNES/Genesis/N64 to Modern TV 2026 – Everything you need to know about displaying your newly recapped NES on a modern television.
• How to Connect Your Retro Console to a Modern TV (15 minutes) – Quick reference for getting your NES displaying properly after recapping.
• Best Retro Gaming Controllers (2026): Budget to Premium Options – Once your NES is working perfectly, ensure you have quality controllers for the full experience.
• Best Cables & Connectors for Retro Consoles (2026): Complete Compatibility Guide – Complete reference for all connection types your NES motherboard uses.

Final Thoughts: Is NES Recapping Worth Your Time?

If you own an original NES console that’s showing signs of capacitor failure—flickering video, audio issues, or power problems—recapping transforms it from a non-functional museum piece into a fully working gaming device. The 1-2 hour time investment plus $40-130 in tools and capacitors gives you a console that will run reliably for another 15+ years.

The skill you develop recapping an NES transfers directly to other consoles. SNES, Genesis, Commodore computers, and dozens of other vintage electronics use nearly identical capacitor replacement techniques. Many enthusiasts find that after successfully recapping their first NES, they’ve developed the confidence to tackle an entire collection.

For someone serious about retro gaming and console preservation, NES motherboard recapping is one of the most satisfying and practical skills to develop. The barrier to entry is low (basic tools and a $25 capacitor kit), the success rate is high (95%+ when following proper procedure), and the reward is a fully functional console you might otherwise have consigned to a shelf permanently.

Start with the budget approach if you’re uncertain, advance to professional-grade equipment if you find yourself recapping multiple systems, and always prioritize quality capacitors over the cheapest options available. Your future self will thank you when your recapped NES is still running perfectly in 2040.
