If you love old music equipment, you know how great vintage amplifiers and receivers can sound. But as they get older, they sometimes need fixing. One common problem is failing capacitors. This guide will show you how to test and replace capacitors in your old audio gear, so it keeps sounding awesome. We’ll explain it simply, so even a 12-year-old could understand the basics.
Table of Contents
Key Points: Capacitor Testing and Replacement
- Electrolytic capacitors often need replacement in vintage electronics
- Use a multimeter to test capacitance and voltage ratings
- Choose replacement capacitors with equal or higher voltage ratings
- Consider ESR (Equivalent Series Resistance) when selecting new capacitors
- Safety first: Always discharge capacitors before handling them
- Replace paper and electrolytic capacitors, but not usually mica or ceramic types
- Use heat shrink tubing to prevent shorts when installing new capacitors
- Run restored equipment regularly to maintain capacitor health
Why Capacitors Matter in Vintage Audio
Capacitors are like the heart of your audio equipment. They store and release electrical energy, helping to smooth out power and shape the sound. Over time, these parts can wear out due to age, heat, and use. When this happens, you might notice:
- Fuzzy or distorted sound
- Hum or buzz in the audio
- Loss of bass or treble
- Equipment that won’t turn on or works inconsistently
- Crackling or popping sounds
- Reduced overall volume
That’s why testing and replacing capacitors is often the first step in bringing your vintage audio gear back to life. By fixing these issues, you can make your old equipment sound great again.
Tools You’ll Need
Before we start, let’s make sure you have the right tools. Having the proper equipment makes the job easier and safer:
- Multimeter (to test capacitors)
- Soldering iron and solder
- Desoldering pump or wick

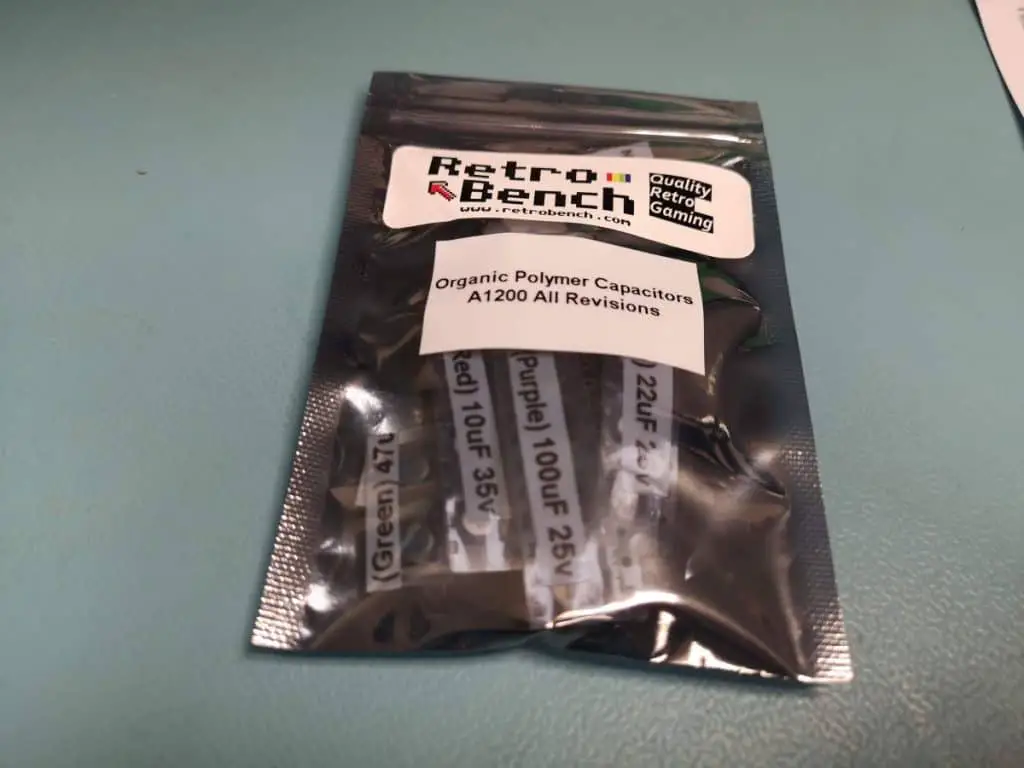

- Replacement capacitors
- Needle-nose pliers
- Safety glasses
- Anti-static wrist strap
- Heat shrink tubing
- Flux and flux remover
- Precision screwdrivers
- Magnifying glass
- Camera or smartphone (to take pictures of the original setup)
Safety First!
Working with electronics can be dangerous if you’re not careful. Always put safety first to protect yourself and your gear:
Unplug your equipment and wait at least 30 minutes before opening it up. This gives time for capacitors to discharge. Even after waiting, use a discharge tool to safely drain any remaining charge from large capacitors. These can hold dangerous voltages even when unplugged.
Work in a well-ventilated area because soldering makes fumes that aren’t good to breathe. Wear safety glasses to protect your eyes. Use an anti-static wrist strap to prevent static electricity from damaging sensitive parts. If you’re unsure about any step, it’s best to ask a professional for help.
Testing Capacitors
Now let’s test those capacitors! Here’s how to check if they need replacing:
- Set your multimeter to capacitance mode.
- Make sure the capacitor is discharged.
- Touch the probes to the capacitor leads, matching positive to positive for electrolytic caps.
- Compare the reading to the value printed on the capacitor.
- If the measured value is off by more than 20%, it’s time for a new one.
- Check for any bulging, leaking, or corrosion – these are signs the capacitor needs replacing.
Even if a capacitor tests okay, it might still be worth replacing if it’s really old. Replacing capacitors before they fail can prevent problems later and keep your vintage equipment working well.
Replacing Capacitors
Ready to swap out those old caps? Here’s how to do it:
- Take a clear picture of the old capacitor for reference.
- Note the capacitance value and voltage rating.
- Choose a replacement with the same (or higher) voltage rating and similar capacitance.
- Carefully desolder the old capacitor.
- Clean the solder pads.
- Insert the new capacitor, matching the polarity for electrolytic types.
- Solder the new capacitor in place.
- Trim any extra wire, leaving about 1-2mm above the solder joint.
- Apply a small amount of protective coating to the solder joints.
For more detailed steps on replacing capacitors, check out our step-by-step guide.
Types of Capacitors You’ll Encounter
In old audio gear, you’ll find different types of capacitors. Each has its own job:
Electrolytic Capacitors
Large values, polarized
Film Capacitors
Stable, good for audio coupling
Ceramic Capacitors
Small values, often for bypass
Mica Capacitors
Precise, stable, often in tuning circuits
Each type has its role in vintage audio circuits. When replacing capacitors, it’s often good to use modern ones with better specs, which can make your vintage equipment sound even better while keeping its classic sound.
Troubleshooting After Replacement
After you’ve replaced the capacitors, it’s time to test your work. Here are some things to watch out for:
- No sound: Check all your connections and make sure everything is plugged in correctly.
- Distorted sound: Make sure you used the right capacitor values and put them in the right way.
- New hum or buzz: Look for loose connections or grounding problems.
- Reduced or uneven sound: Check the values of capacitors in the signal path.
- Intermittent operation: Look for poor solder joints or loose connections.
- Squealing sounds: Keep wire leads short and make sure your layout matches the original.
If you’re still having problems after checking these things, it might be time to ask a professional for help. Sometimes, fixing one thing can reveal other hidden problems.
Wrapping Up
Great job! You’ve taken a big step in fixing up your old audio equipment. By testing and replacing capacitors, you’re not just fixing a problem – you’re giving new life to a piece of music history.
Don’t worry if it’s not perfect the first time. The more you practice, the better you’ll get. As you learn more about old audio gear, you’ll get better at making it sound great.
Keep exploring and learning about fixing old electronics. It’s really satisfying to hear a piece of equipment come back to life, often sounding better than when it was new. For more tips on bringing old tech back to life, check out our other guides on fixing vintage amplifiers.
Have fun tinkering, and enjoy that awesome vintage sound! Your work helps keep a piece of audio history alive for future music lovers to enjoy. Keep learning, keep fixing, and most importantly, keep listening to the amazing music these old machines can make.
